Equalizing Efficiency: The Science Behind Balanced Flow Distribution

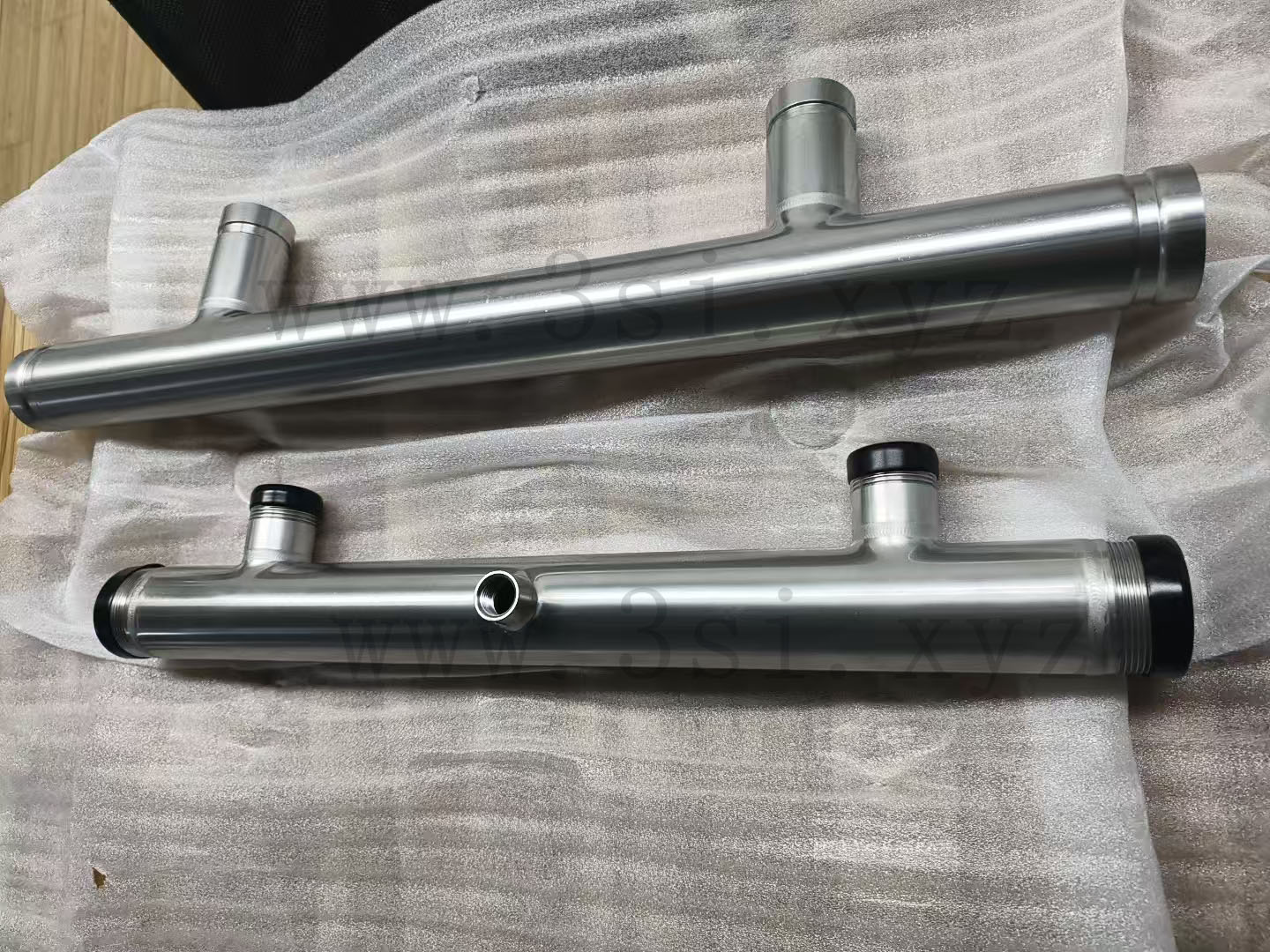

In multi-outlet manifolds—common in cooling systems, lubrication networks, and process distribution—uneven flow leads to inefficient operation, component stress, and system imbalance. Achieving truly balanced distribution requires more than symmetrical plumbing; it requires fluid dynamic engineering.

Consequences of Poor Flow Distribution:

• Hot spots in cooling systems due to unequal flow

• Varying reaction rates in process manifolds from inconsistent reagent delivery

• Differential wear in lubrication systems

• Energy waste from compensating pumps and controls

3S International's Balanced Flow Methodology:

• Computational Fluid Dynamics (CFD) analysis of each outlet configuration

• Progressive internal diameter adjustment to maintain consistent pressure drop

• Strategic flow conditioning elements to minimize turbulence before branching

• Balancing valve integration points for field adjustment if needed

• Verified performance testing with flow meters at each outlet to confirm balance

Technical Perspective: Perfect flow balance is achieved when pressure drop through each parallel path is identical. We don't assume symmetry creates balance—we engineer each flow path to deliver precisely what your process requires, regardless of outlet position or system demands.
