Recessed Pipe Caps for Crane Hooks/Liftable Pipe Caps

A. Size Range: 4''-36”

B. Color: Yellow, Blue, White, Orange, Black, Red, Green, etc

C. Material: PE

D. Protect pipe bevels and internal walls from corrosion and damage

E. Accept crane hooks for moving pipes during storage, transit and laying

F. Resistant to temperatures from -50 °C to +60 °C

G. Can last for years because the plastic is UV resistant to sun and age. Caps can be closed or open end, custom designed, and fabricated to your specific needs

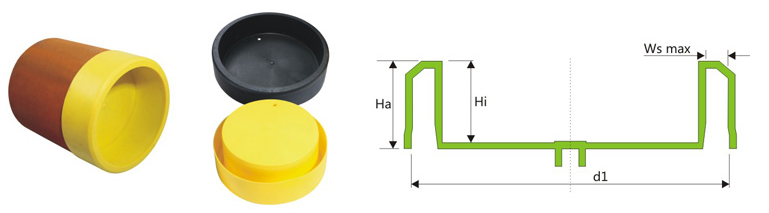

Pipe		DepthDimensions
PipeDiameterd1	Max.Wall ThicknessofPipe Wsmax	InternalDepth ofProtector Hi	ExterinalDepth Ha
114.3-4.1/2"	12.0	89.0	63.7
168.3-6.5/8"	10.0	90.0	65.0
168.3-6.5/8"	16.0	90.0	65.0
168.3-6.5/8"	22.0	90.0	65.0
219.1-8.5/8"	14.0	90.0	65.0
219.1-8.5/8"	20.0	90.0	65.0
219.1-8.5/8"	24.0	90.0	68.0
273.0-10.3/4"	15.0	100.0	92.0
273.0-10.3/4"	23.0	100.0	92.0
323.9-12.3/4"	15.0	100.0	92.0
323.9-12.3/4"	21.0	110.0	92.0
323.9-12.3/4"	26.0	100.0	92.0
355.6-14."	15.0	100.0	92.0
377.0-	22.0	100.0	92.0
406.4-16"	16.0	100.0	92.0
406.4-16"	22.0	100.0	92.0
457.2-18"	16.0	100.0	95.0
457.2-18"	25.0	100.0	95.0
508.0-20"	16.0	100.0	95.0
508.0-20"	26.0	100.0	95.0
609.6-24"	22.0	120.0	117.0
609.6-24"	31.0	120.0	117.0
660.4-26"	25.0	120.0	120.0
711.2-28"	25.0	120.0	120.0
762.0-30"	25.0	120.0	120.0
762.0-30"	33.0	120.0	120.0
812.8-32"	25.0	122.0	122.0
914.4-36"	25.0	122.0	122.0
914.4-36"	35.0	122.0	122.0
1016.0-40"	30.0	122.0	126.0
