Plastic Bolted Quick Fit Flange Covers

A. Color: Yellow, Blue, White, Orange, Black, Red, Green, etc

B. Material: LDPE

C. Usage: To protect flange from damage and contamination during transit, handling and storage

D. Available in 150 /300/600/900/1500/2500Lb. Pressure classes

E. Designed with a flexible hinge for easier installation and quicker removal

F. Designed with enhanced side and end walls to enable greater surface contact with the face of the flange

G. Being specific to the size and pressure rating of the flange, they offer a perfect fit protecting all critical areas of the flange.

H: Most sizes in-stock for immediate delivery

150LB

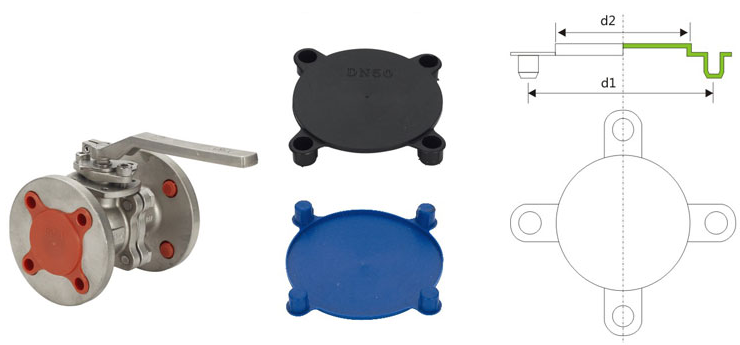

Site	d1	d2	Hole
1/2"	60.45	39	15.7
3/4"	69.85	48	15.7
1"	79.25	53	15.7
1 1/4"	88.9	67	15.7
1 1/2"	98.6	82	15.7
2"	120.7	99	19.1
2 1/2"	139.7	117	19.1
3"	152.4	129	19.1
4"	190.5	168	19.1
5"	215.9	190	22.4
6"	241.3	220	22.4
8"	298.5	271	22.4
10"	362	325	25.4
12"	431.8	388	25.4
14"	476.3	412	28.4
16"	539.8	468	28.4
18"	577.9	540	31.75
20"	635	586	31.75
24"	749.3	693	35.05
26"	806.45	754	35.05
28"	863.6	805	35.05
30"	914.4	862	35.05

600LB
Site	d1	d2	Hole
1/2"	66.55	39	15.7
3/4"	82.5	47	19.1
1"	88.9	54	19.1
1 1/4"	98.6	69	19.1
1 1/2"	114.3	79	22.4
2"	127	99	19.1
2 1/2"	149.4	105	22.4
3"	168.1	133	22.4
4"	215.9	173	25.4
5"	266.7	186	28.4
6"	292.1	244	28.4
8"	349.3	305	31.75
10"	431.8	369	35.1
12"	489	414	35.1
14"	527.1	458	38.1
16"	603.3	509	41.1
18"	654.1	576	44.5
20"	723.9	636	44.5
24"	838.2	750	50.8

1500LB
Site	d1	d2	Hole
1/2"	82.5	43	22.3
3/4"	88.9	51	22.3
1"	101.6	59	25.4
1 1/4"	111.2	64	25.4
1 1/2"	123.9	80	28.4
2"	165.1	129	25.4
2 1/2"	190.5	105	28.4
3"	203.2	170	31.7
4"	241.3	186	35
5"	292.1	186	41.1
6"	317.5	251	38.1
8"	393.7	325	44.4
10"	482.6	375	50.8
12"	571.5	439	53.8
14"	635	490	60.45
16"	704.8	547	66.55
18"	774.7	614	73.15
20"	831.8	674	79.25
24"	990.6	795	91.9

300LB
Site	d1	d2	Hole
1/2"	66.55	39	15.7
3/4"	82.5	47	19
1"	88.9	54	19
1 1/4"	98.5	69	19
1 1/2"	114.3	78	22.3
2"	127	99	19
2 1/2"	149.3	109	22.3
3"	168.1	133	22.3
4"	200.1	163	22.3
5"	234.9	194	22.3
6"	269.7	222	22.3
8"	330.2	276	25.4
10"	387.3	328	28.4
12"	450.8	393	31.7
14"	514.3	408	31.7
16"	571.5	467	35
18"	628.6	539	35
20"	685.8	589	35
24"	812.8	697	41.1
26"	876.3	754	44.45
28"	939.8	805	44.45
30"	996.95	862	47.75

900LB
Site	d1	d2	Hole
1/2"	82.5	43	22.3
3/4"	88.9	51	22.3
1"	101.6	59	25.4
1 1/4"	111.2	64	25.4
1 1/2"	123.9	80	28.4
2"	165.1	129	25.4
2 1/2"	190.5	105	28.4
3"	190.5	170	25.4
4"	234.9	187	31.7
5"	279.4	186	35
6"	317.5	248	31.7
8"	393.7	312	38.1
10"	469.9	367	38.1
12"	533.4	420	38.1
14"	558.8	468	41.1
16"	615.9	525	44.4
18"	685.8	595	50.8
20"	749.3	649	53.8
24"	901.7	773	66.55

2500LB
Site	d1	d2	Hole
1"	108	85	25.4
1 1/2"	146.1	115	31.75
2"	171.5	140	28.4
3"	228.6	172	35.1
4"	273.1	209	41.1
6"	368.3	280	53.8
8"	438.2	341	53.8
10"	539.8	426	66.55
12"	619.3	496	73.15
